Beelink SER8 AMD Ryzen™ 7 8745HS

$479.00

Beelink SER8 AMD Ryzen™ 7 8745HS

A True Powerhouse A True Powerhouse

Compact Design Compact Design

Fast Connectivity Fast Connectivity

Intel Celeron N5105

CPU

Max DDR4 2933Mhz

Memory

M.2 SATA3 SSD

Storage

WiFi 6

WiFi

Beelink SER8 AMD Ryzen™ 7 8745HS

Mini PCs: Unleashing Maximum Efficiency Mini PCs: Unleashing Maximum Efficiency

Cinebench 20 Running Score Cinebench 20 Running Score

6643

3Dmark 11 Performance 3Dmark 11 Performance

P8179

AMD Ryzen™ 7 8745HS

Equivalent to 8845HS without the Ryzen AI Engine NPU, the 8745HS offers better value and equally unbeatable performance.

4.9 GHz

Max Turbo Frequency TDP(MSP): 65W

8 Cores

Zen 4 CPU Cores

16 Threads

TSMC 4nm FinFET Process
16MB L3 Smart Cache

Processor Performance Comparison:

40%

AMD Ryzen™ 7 8745HS(65W)

Benchmark

AMD Ryzen™ 7 7735HS(54W)

AMD Radeon™ 780M

12CORES 2600MHz

RDNA3

Hardware ray-tracing greatly enhances gaming and
rendering performance, also supports AV1 hardware en-and decoding

32dB Near-Silent Operation

SSD 1TB/2TB(1TB*2)

DDR5 32GB

32dB

32dB Noise Level, Ultra Quiet

64GB RAM

Dual-channel DDR5 5600MHz RAM
Max 256GB
Options:32GB/64GB

2TB SSD

Dual M.2 2280 PCle 4.0 Max 8TB Options:1TB/2TB(1TB*2)

2.5Gbps

LAN

5.2

Bluetooth 5.2

2.4Gbps

WiFi6 (Intel AX200)

MSC 2.0 – Cooling System

Air intake from the bottom is so efficient at dissipating the heat that SER8 needs very low fans peed to stay cool and stable at 65W TDP, ensuring near-silent operation. Integrated metal case not only offers excellent structural integrity but also acts as a noise dampener, providing a quiet computing experience.

MSC 2.0 – Vapor Chamber

Increased vapor chamber area for better heat transfer and reducing the need for excessive fan usage.

Silent Fan and SSD Heatsink

The system fan and heat sink dissipate the heat through airflow, offering efficient cooling for the CPU、SSD and RAM.

MSC 2.0 – Cooling System

Air intake from the bottom is so efficient at dissipating the heat that SER8 needs very low fans peed to stay cool and stable at 65W TDP, ensuring near-silent operation. Integrated metal case not only offers excellent structural integrity but also acts as a noise dampener, providing a quiet computing experience.

MSC 2.0 – Vapor Chamber

Increased vapor chamber area for better heat transfer and reducing the need for excessive fan usage.

Silent Fan and SSD Heatsink

The system fan and heat sink dissipate the heat through airflow, offering efficient cooling for the CPU、SSD and RAM.

Dustproof Design

High-Density Metal filter at the bottom ensuring optimal airflow, no more internal dust accumulation, no more dust-related malfunction.

Compact and Space-saving

Triple Display

Multi-scenario Application

Dual Color Options

Two Modes Options

Compact and Space-saving

Triple Display

Multi-scenario Application

Dual Color Options

Two Modes Options

RDNA3 Graphics Card Architecture Game Frame Rate Test

Test Configurations: SER8 (AMD 8745HS Processor, AMD Radeon™ 780M Graphics, 32GB DDR5 5600MHz RAM, 500GB PCle 4.0x4 SSD), 1080p, 30℃ ambient temperature.

FPS 105-120

FPS 120

FPS 75-95

FPS 150-174

FPS 50-60

DOTA2/CSGO/PUBG/LOL/Destiny2

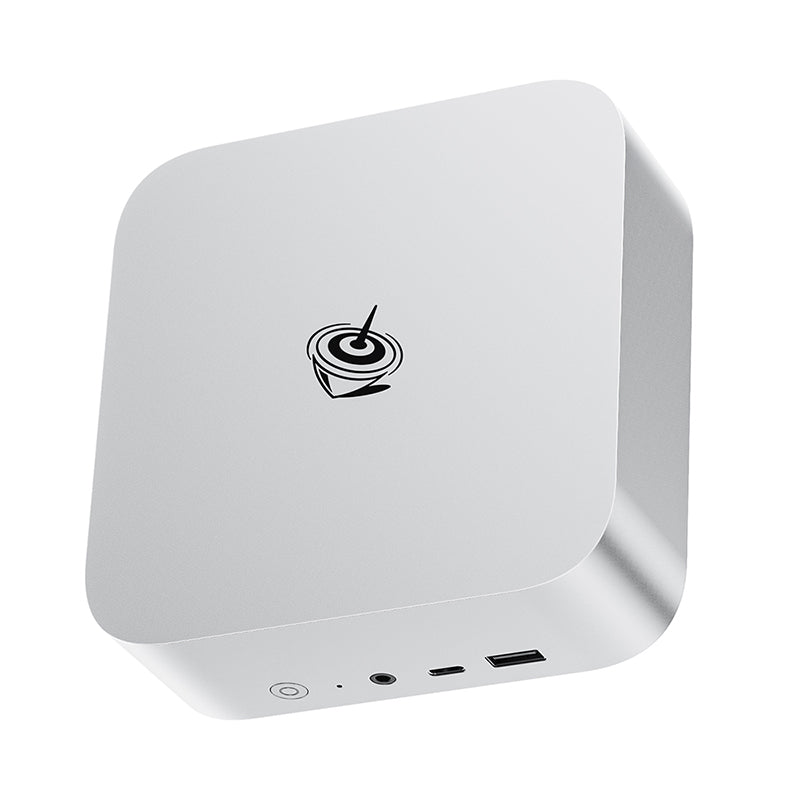

SER8 AMD Ryzen™ 7 8745HS

Beelink SER8 mini PC is powered by an AMD Ryzen™ 7 8745HS processor with Max Turbo Frequency of 4.9GHz and AMD Radeon 780M iGPU. Equivalent to an 8845HS without the Ryzen AI Engine NPU, the 8745HS offers better value and equally unbeatable performance.

Product Structure

Specifications

CPU

AMD Ryzen™ 7 8745HS 8C/16T 4.9GHz Max Turbo Frequency
16MB L3 Cache

GPU

AMD Radeon™ 780M
12 Cores 2600 MHz

MEMORY

Dual SO-DIMM DDR5 5600MHz Slot
Max 256GB
Options: 32GB/64GB

STORAGE

Dual M.2 2280 PCle4.0 X4
Max 8TB
Options: 1TB/2TB(1TB*2)

COOLING SYSTEM

MSC 2.0 – Cooling System
Vapor Chamber+Silent Fan+SSD Heatsink

TRIPLE DISPLAY

DP1.4(4K 144Hz)*1+HDMI 2.1(4K 120Hz)*1+USB4(40Gbps/TBT3/PD/DP1.4)*1
Support 4K Output

COLOR

Frost Silver / Space Gray

DIMENSIONS & WEIGHT

0.814L
0.75Kg

WIRELESS NETWORK

WiFi 6 (Intel AX200)
Bluetooth 5.2

ADAPTER

Input: 100-240V AC, 50/60Hz
Output: 19V 5.26A

WARRANTY & SERVICE

One-year Warranty

ADDTIONAL FUCTION

AUTO POWER ON WOL

USER'S MANUAL

SER8 User's Manual

Download

What's In The Box

1. SER8 8745HS

2. User's Manual

3. HDMI Cable

4. Power Adapter (Optional:US/EU/UK/JP/AU)

1. SER8 8745HS

2. User's Manual

3. HDMI Cable

4. Power Adapter (Optional:US/EU/UK/JP/AU)
