EQR5 can enhance work efficiency across multiple scenarios, eliminate crashes and lags that hinder productivity, and provide you with a stable and serene work environment.
Max Turbo Frequency
CPU Cores "Zen 3"Microarchitecture
TSMC 7nm FinFET 16MB L3 Smart Cache
32dB Noise Level, Ultra Quiet
SO-DIMM DDR4 3200MHz
Up to 64GB
Dual M.2 2280 PCle 3.0X4
Max 8TB
LAN
Bluetooth 5.2
WiFi6 (Intel AX200)
Air intake from the bottom is so efficient at dissipating the internal heat, reducing the temperature of key components including the CPU, RAM and SSD. Enjoy a silent workplace and focus on every moment.
EQR5 supports DDR4 3200MHz of up to 64GB.
There are dual M.2 2280 PCle 3.0X4 SSD slots, supporting up to 8TB fast internal storage.
Air intake from the bottom is so efficient at dissipating the internal heat, reducing the temperature of key components including the CPU, RAM and SSD. Enjoy a silent workplace and focus on every moment.
EQR5 supports DDR4 3200MHz of up to 64GB.
There are dual M.2 2280 PCle 3.0X4 SSD slots, supporting up to 8TB fast internal storage.
Compact and Space-saving
Compact and Space-saving
32dB Near-Silent Operation
32dB Near-Silent Operation
Effortlessly Handle Entertainment and Office
Effortlessly Handle Entertainment and Office
Meticulous Design
Meticulous Design
Amazing Aesthetics
Amazing Aesthetics
Compact and Space-saving
32dB Near-Silent Operation
Effortlessly Handle Entertainment and Office
Meticulous Design
Amazing Aesthetics

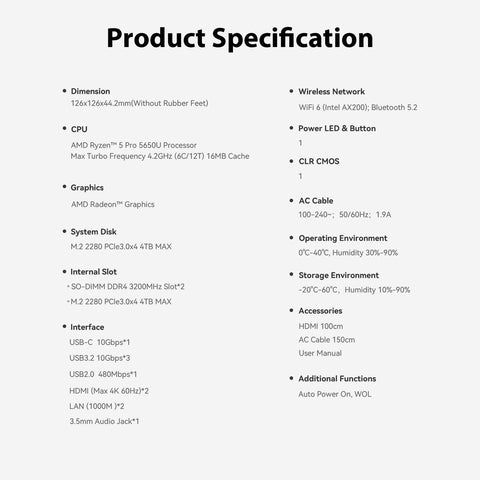

Optional:
AMD Ryzen™ 7 5825U 8C/16T
AMD Ryzen™ 5 Pro 5650U 6C/12T
Optional:
AMD Radeon™ Graphics 8CUs 2000ΜHz
AMD Radeon™ Graphics 7CUs 1800ΜHz
Dual SO-DIMM DDR4 3200MHz Slot
Max 64GB
Options: 16GB/32GB
Dual M.2 2280 PCle3.0 X4
Max 8TB
Options: 500GB
MSC 2.0 – Cooling System
Heat Pipe +Heat Dissipation Fins+Silent Fan+SSD Heatsink

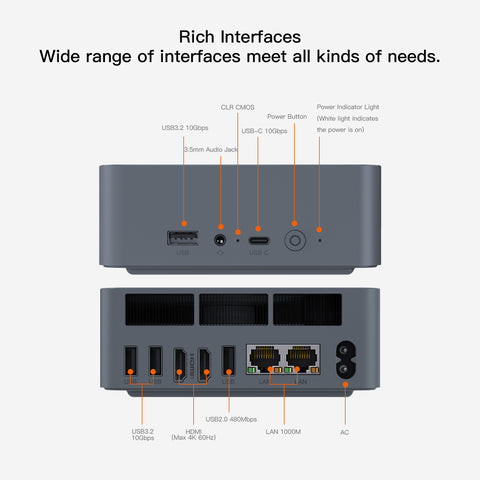

HDMI(Max 4K 60Hz) *2
Milky Grey
126x126x44.2mm(Without Rubber Feet)
520g
WiFi 6 (Intel AX200)
Bluetooth 5.2
Input: 100-240V AC, 50/60Hz; 1.9A
One-year Warranty
AUTO POWER ON WOL
EQR5 User's Manual
